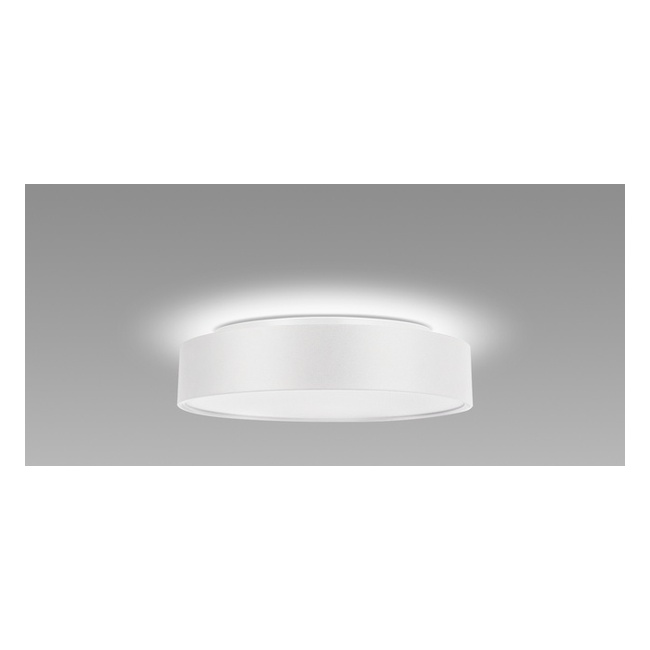

Compo Office Direct/ Indirect 4 x Sizes Prismatic Diffuser

Pure architectural light fittings for all applications. Compo series is a very classic cylindrical design in various sizes and mounting options that integrates elegantly into any architecture. Uniformly illuminated thanks to its micro-prismatic diffuser, purpose-built for low-glare office lighting — ideal for office, education, healthcare, retail, hospitality and hotel applications.

Features and Details:

• Designed by NPK design, the Netherlands
• Can be surface mounted, wall mounted, or suspended
• Direct only or direct – indirect light distribution (indirect switched on/off via button on the luminaire base)
• High efficiency and perfect glare control
• Low – glare UGR < 19 thanks to micro-prismatic diffuser
• Limited height design: 69mm direct light version, 79mm direct – indirect version
• Ease of installation with no visible screws
• Interchangeable diffusers for easy maintenance
• Flicker-free built-in driver
• Phase dimming, DALI (DT-6), Emergency and DALI (DT-6) + Emergency options available

Specifications:

• Materials: Aluminium, Micro-prismatic diffuser

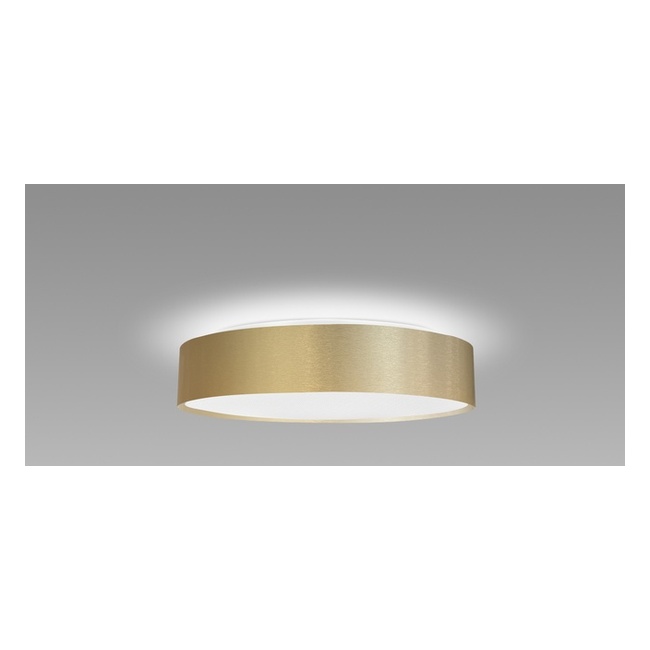

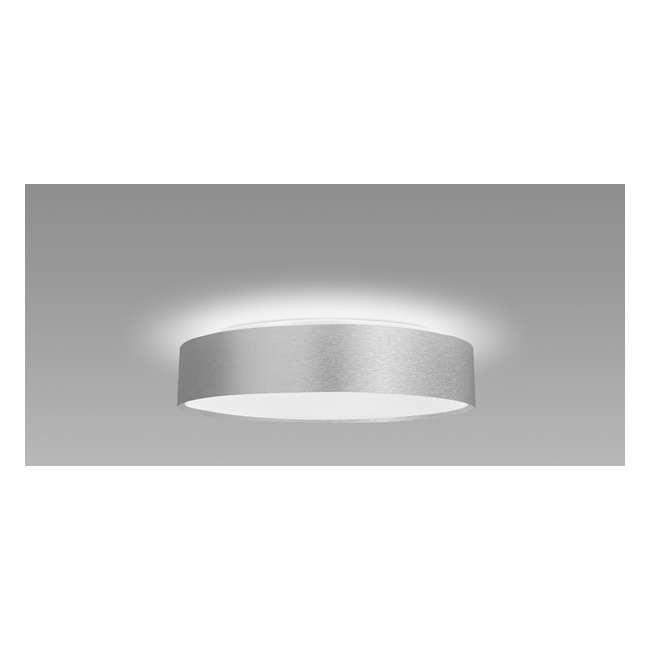

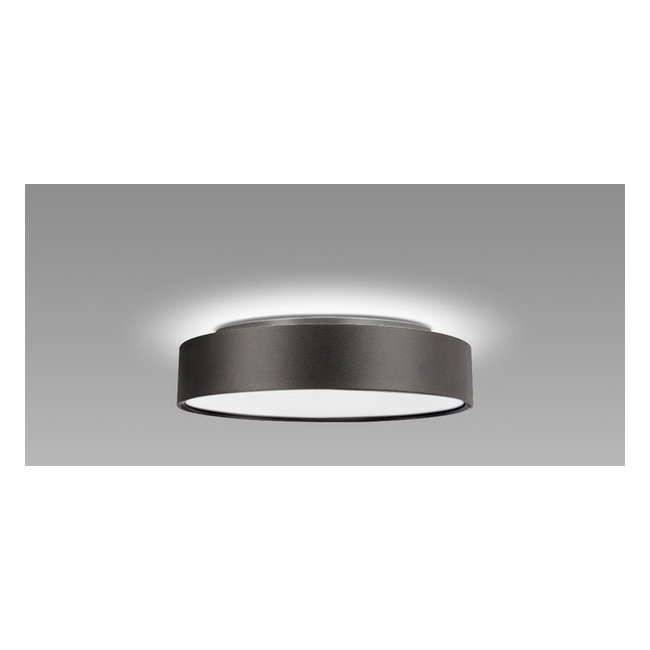

• Finishes: Black/White/Brushed Gold/Brushed Silver
• LED Chip: Seoul

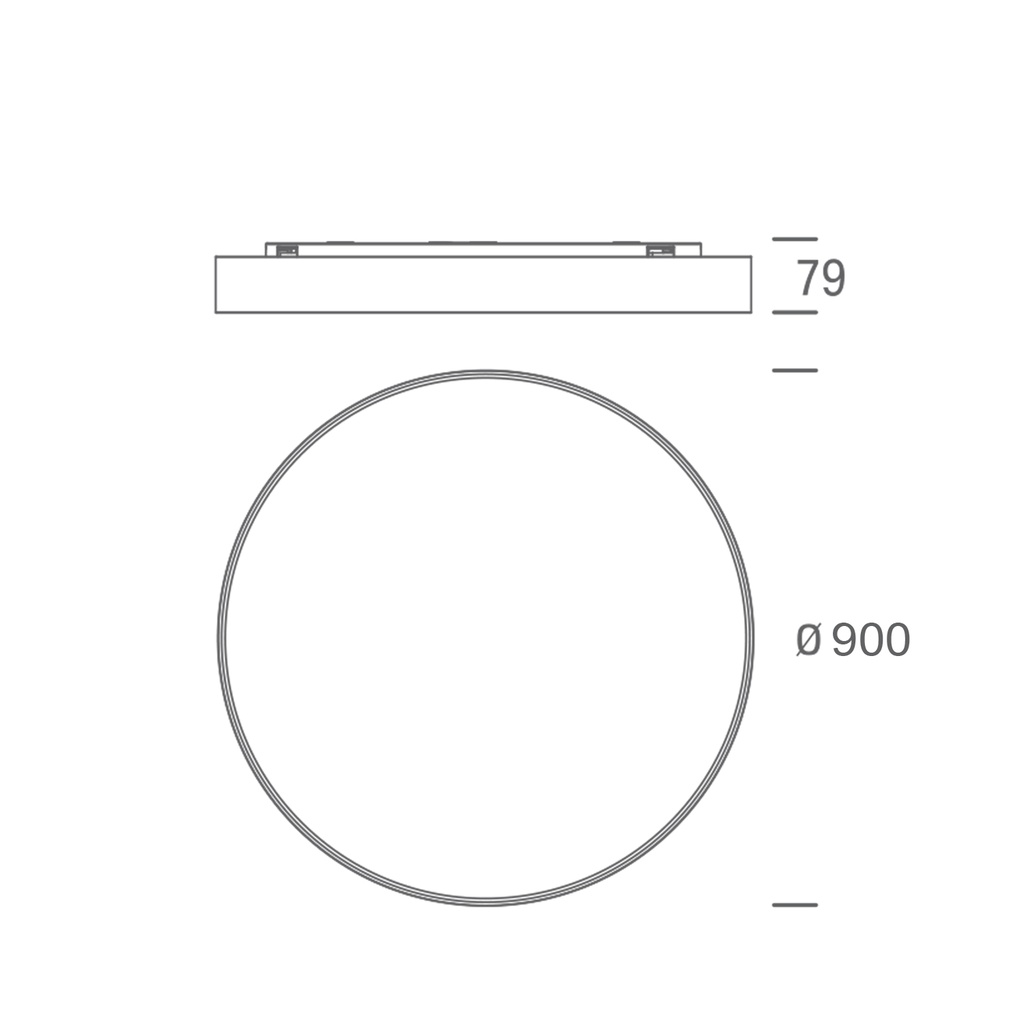

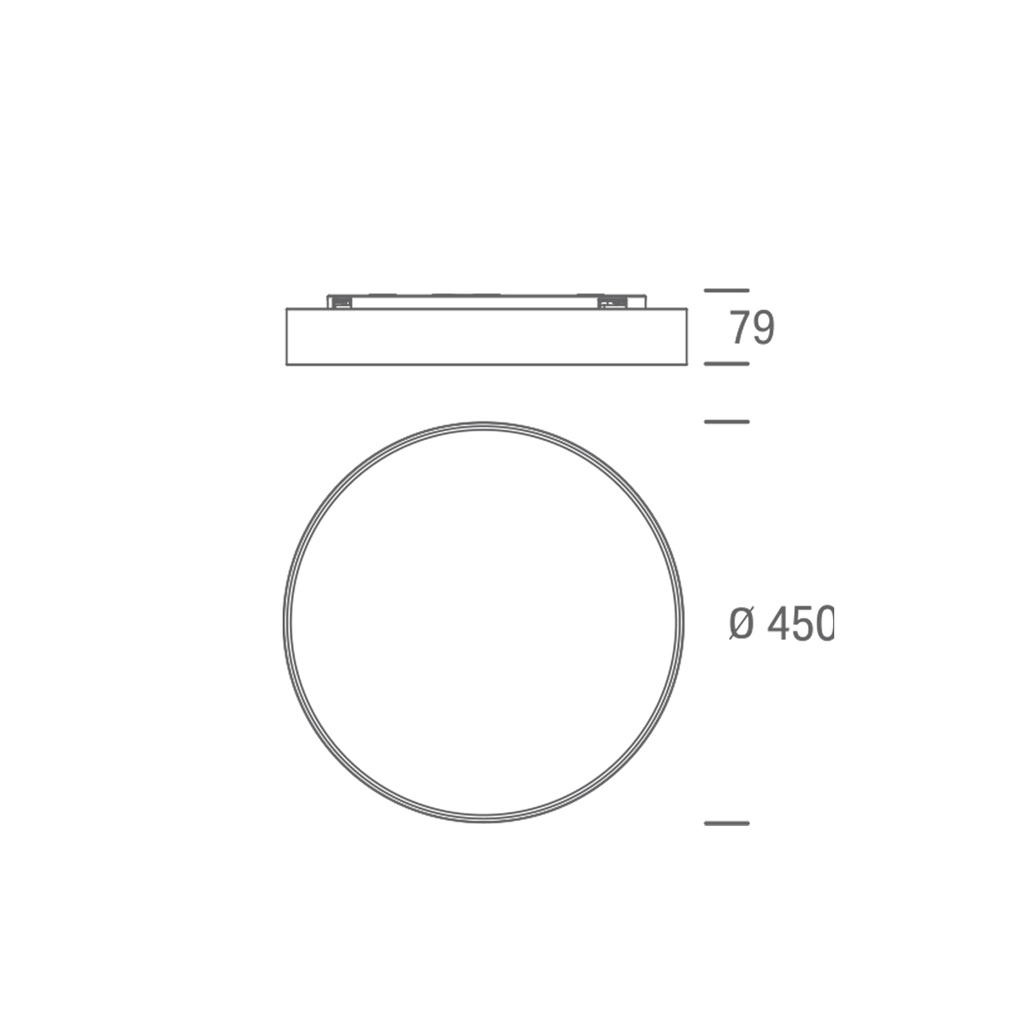

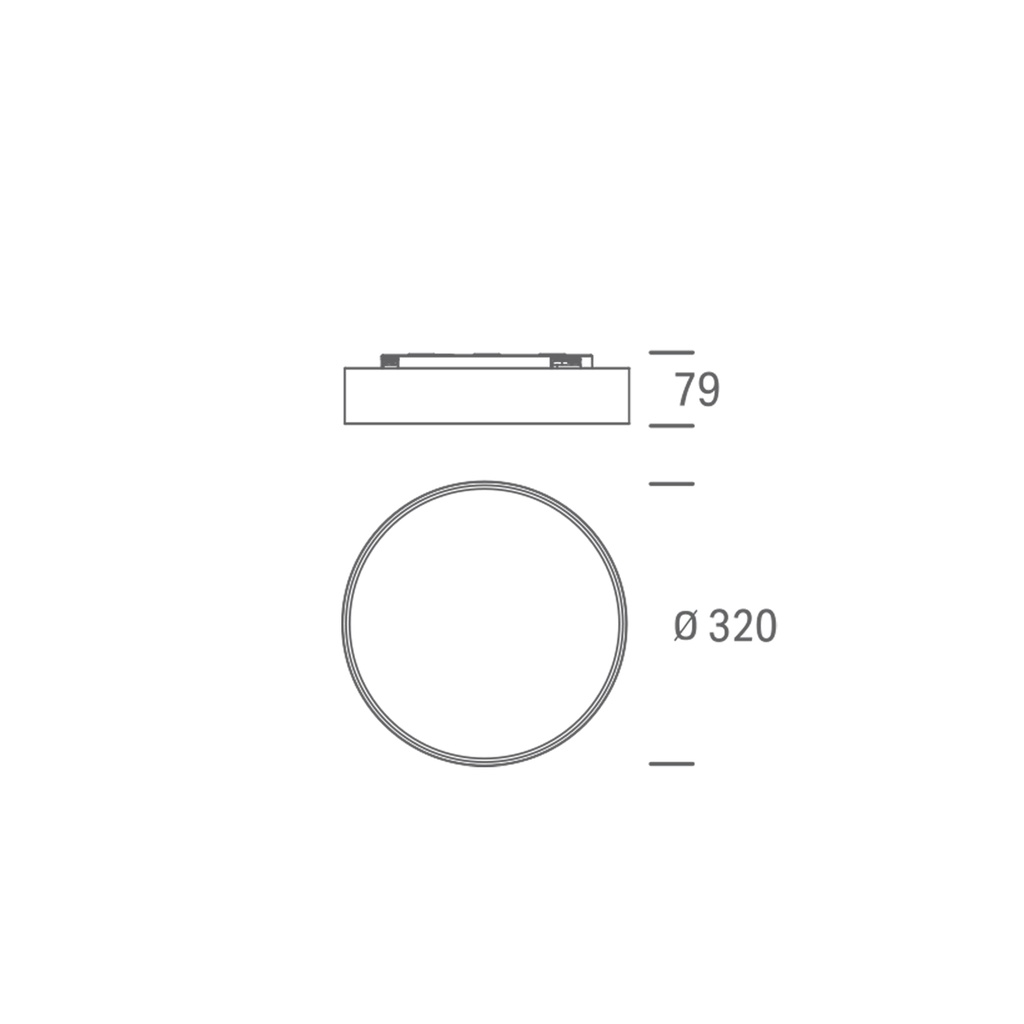

• Diameter: 320mm / 450mm / 600mm / 900mm
• Height: 79mm (Direct/Indirect version, all sizes)
• Sizes & Power: 320mm - 24W/18W/10W | 450mm - 30W/22W | 600mm - 55W/38W | 900mm - 90W/70W/55W
• Sizes & Lumen: 320mm - 2400lm/1800lm | 450mm - 3100lm/2300lm | 600mm - 5500lm/4000lm | 900mm - 9000lm/7000lm/5500lm
• Efficacy: 100lm/W
• CCT: 3000K/4000K Switch as standard, 6500K on request
• Dimming: Phase Dimming/DALI
• IP Rating: IP20
• IK Rating: IK08
• CRI: > 90
• SDCM: < 3
• UGR: < 19
• Beam Angle: 90°
• Flicker (PstLM): < 0.7
• Stroboscopic Effect (SVM): < 0.3
• Lifetime: > 50,000h L80
• Light Distribution: Direct only or Direct/Indirect
• Warranty: 5 Years

Optional  accessories:

• Rod suspended kit, 1m as standard
• Cable suspension kit, 2m as standard
