Installation Guides & Tips
A growing collection of resources to assist you with a smooth installation experience!
Mitsi LED Strips
• Do NOT turn on LED strip while rolled up on the spool
• Install on clean and dry surface
• Install on heat sinking aluminium extrusion
• Do not twist LED strip
Mitsi 6 Tri-Power

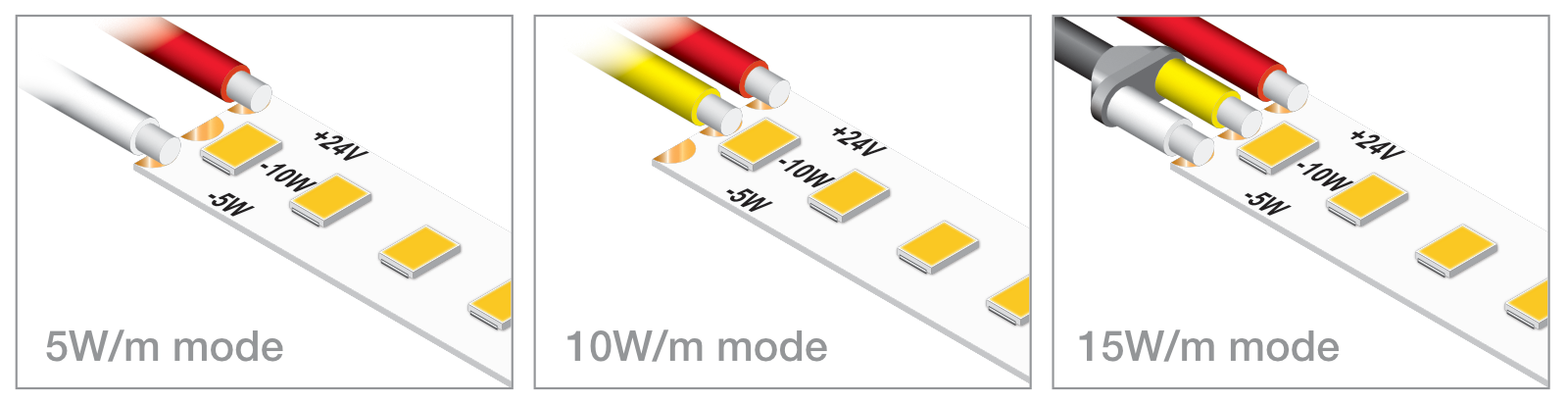

Mitsi 6 allows you to choose from three connection options producing 5, 10 or 15W/m of light output.
LED Strip Width | Cuttable Segments | Max. Lengths per Power Injection | Max. Bending Radius | |
Mitsi 4 | 4mm | 33.3mm | 3m | 30mm |
Mitsi 6 | 6mm | 33.3mm | 5m | 30mm |
Mitsi 10 | 10mm | 35.8mm | 5m | 30mm |
Mitsi 24 | 24mm | 25mm | 2.5m | 30mm |
More installation guides will be added soon …
